  • Stainless Steel CNC Machining Impeller

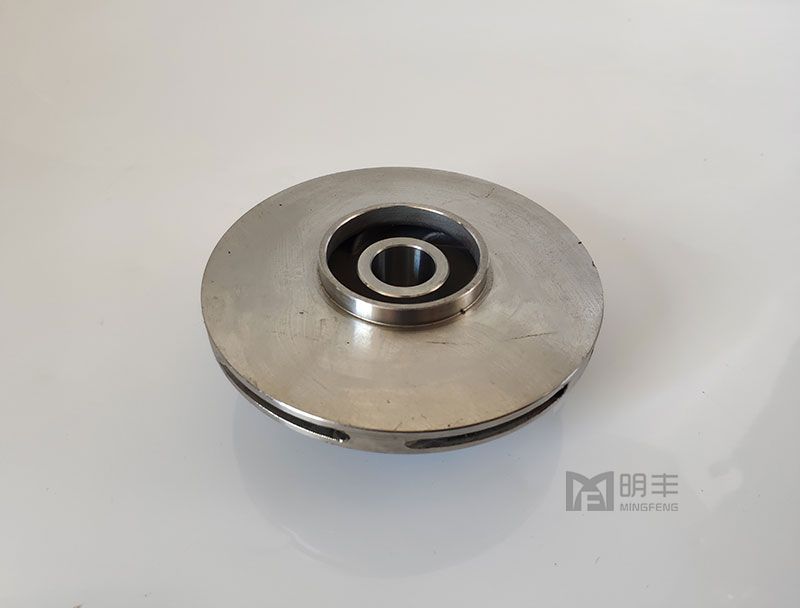

Stainless Steel CNC Machining Impeller

Technological Process:


Casting(Ludox Process)-->CNC lathe-->CNC Machining Center(the fourth axis)-->Package


Size: non-standard


Material: SS304


Investment Casting Services & Capabilities

Investment casting is one of the oldest manufacturing processes,. The mold is formed by using a wax pattern - a disposable piece in the shape of the desired part. The pattern is surrounded, or "invested", into ceramic slurry that hardens into the mold. Investment casting is often referred to as "lost-wax casting" because the wax pattern is melted out of the mold after it has been formed. Lost-wax processes are one-to-one (one pattern creates one part), which increases production time and costs relative to other casting processes. However, since the mold is destroyed during the process, parts with complex geometries and intricate details can be created. Investment casting can make use of most metals, most commonly using aluminum alloys, bronze alloys, magnesium alloys, cast iron, stainless steel, and tool steel. This process is beneficial for casting metals with high melting temperatures that cannot be molded in plaster or metal. Parts that are typically made by investment casting include those with complex geometry such as turbine blades or firearm components. High temperature applications are also common, which includes parts for the automotive, aircraft, and military industries.


Casting Costs

Investment casting(Precision casting/ Lost wax casting)  >Water glass Casting > Resin Sand Casting





MaterialAISI304
Model TypeStainless steel
StandardAISI,ASTM,JP,EN,DIN,GB
ShapeAccoridng to your custom request
FinishSandblasting,Polishing,E-Planting,Powder Coating.
Fabricationcutting,milling,drilling
MOQ300KG
Length6m or according to custom request
Supply ability1000T/Month
DrawingsSTEP or IGS with DXG,DXF
Tolerance±0.005mm
Package:
1.) protective film and Composite paper;1, Package:
2.) Plastic paper;
3.) Each 40 feet container can load about 26 tons.
